Hatch (CurveList, Gradient, Pattern)

Component Code = Hatch

Curvelist = list of curves which define a boundary.

Any one of Gradient or Pattern should be used.

Gradient = Name of any of the built in gradients in AutoCAD

Pattern = Name of any of the built in pattern in AutoCAD

Point

Component Code = point

Creates a point in the current component block

Used to create a reference point which can be used later in the model.

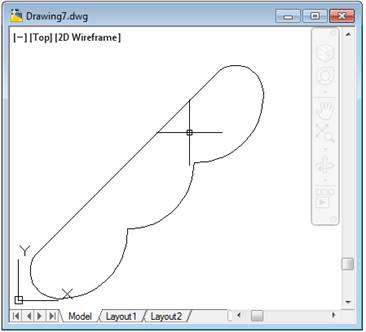

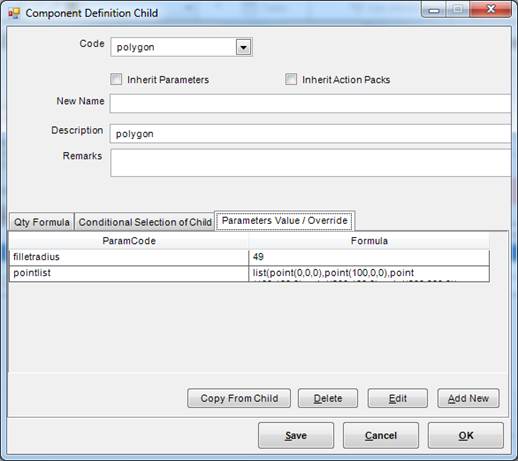

Polygon (pointlist, filletradius)

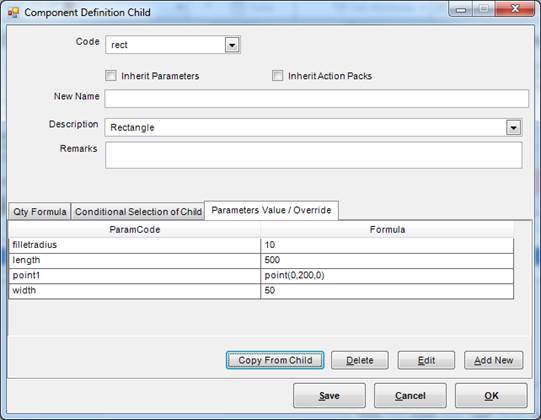

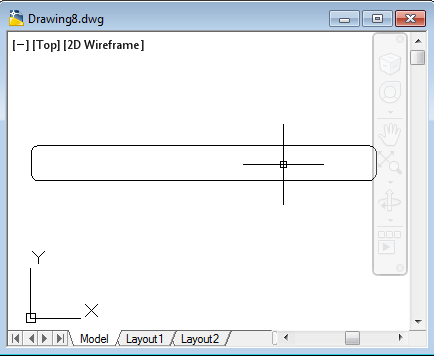

Rectangle

Component Code = rect

Parameter Groups = As shown below

Rectangle 2p (2 points), Rectangle plw (point + length + width)

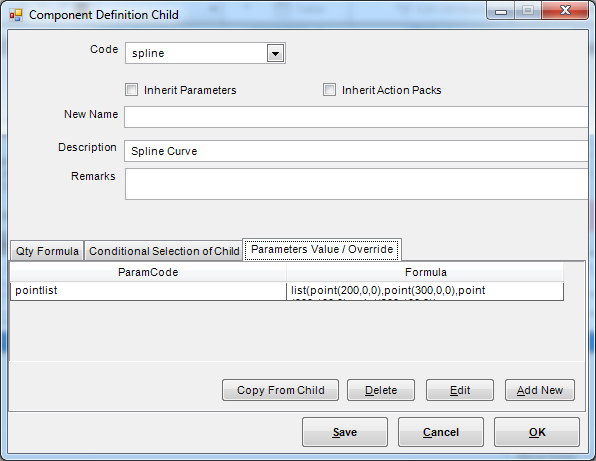

SplineCurve (pointlist)

Component code - Spline

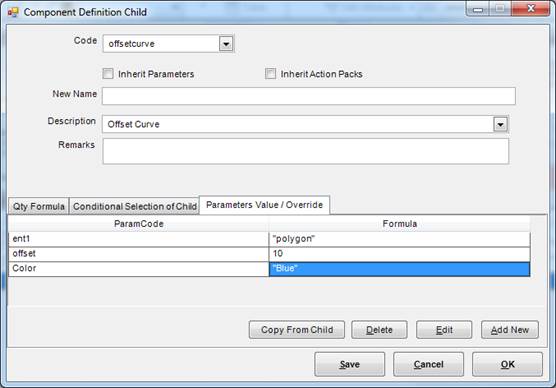

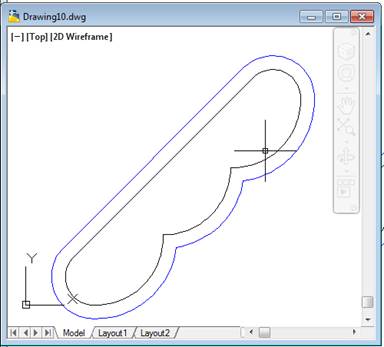

OffsetCurve (Ent1,Offset)

Component Code = OffsetCurve
